Description

Description

Includes

• 1 x MILWAUKEE 18V FUEL™ 13mm Hammer Drill/Driver Skin M18FPD30
• 1 x MILWAUKEE 18V FUEL™ 1/4" Hex Impact Driver Skin M18FID30
• 1 x MILWAUKEE 18V FUEL™ Brushless 125mm Angle Grinder w. Deadman Paddle Switch Skin M18FAG125XPD-0
• 1 x MILWAUKEE 18V Brushless 184mm Circular Saw Skin M18BLCS66-0
• 1 x MILWAUKEE 18V FUEL™ 26mm SDS Plus Rotary Hammer Skin M18FH-0
• 2 x MILWAUKEE 18V 5.0Ah Red Lithium-Ion Battery M18B5
• 1 x MILWAUKEE 12V/18V 4.5/6.0Ah Multi-Voltage Rapid Charger M12-18FC
• 2 x Side Handles
• 2 x Belt Clips
• 2 x Bit Holders
• Depth Gauge
• Anti-Vibration Side Handle
• 125 mm (5") Type 27 Guard
• Type 1 Clip-on Guard
• Backing Flange
• Spanner Wrench
• 2 x Vent Clips
• 184 mm (7-1/4") 24T Blade
• Wrench
• Dust Chute
• Rip Fence and Wheelie Contractor Bag

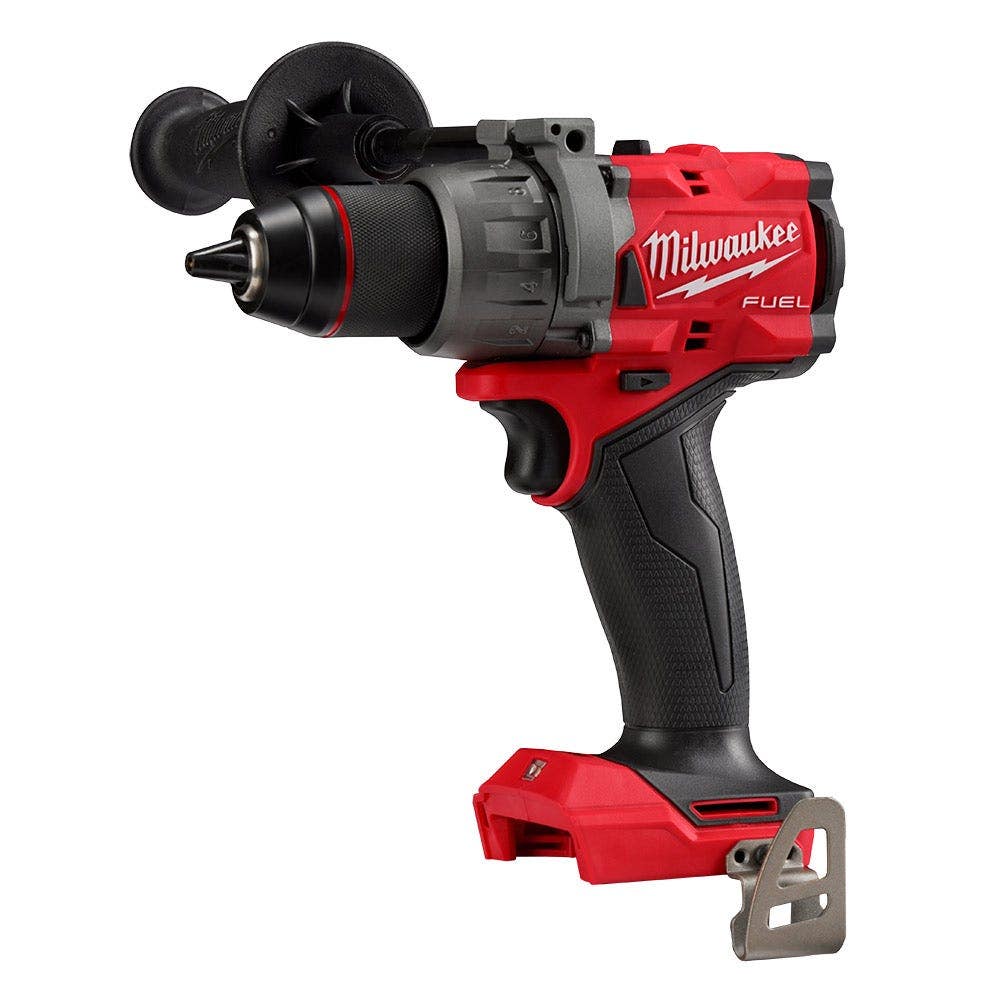

MILWAUKEE 18V FUEL™ 13mm Hammer Drill/Driver Skin M18FPD30

The 18V FUEL™ 13 mm Hammer Drill Driver delivers the capability to drill large holes at high speed into the densest materials. The cordless drill is a compact design and solution, featuring AutoStop™ Control Mode for Enhanced Safety. The POWERSTATE™ Brushless motor delivers the most power under load to complete 2-9/16" Self-Feed holes in dense woods for increased productivity. At only 175 mm in length, it provides maximum access and maneuverability in tight spaces.

The AutoStop™ Control Mode offers enhanced safety for the operator by preventing over-rotation in a bind-up. The REDLINK PLUS™ intelligence ensures maximum performance and protection from overloads, heating, and over-discharge whilst the all metal ratcheting chuck provides increased grip strength, durability, and corrosion resistance.

• POWERSTATE™ Brushless Motor delivers 158 Nm of Max Torque with 2,100 RPM and 33,000 BPM
• Redesigned trigger mechanism with improved fitment and smoother acceleration provides the ultimate trigger control
• Offers an enhanced safety control mode, AUTOSTOP™, preventing over-rotations in bind-up situations
• New M-Clutch design enables the tool to handle a wider range of torque settings with improved drilling and fastening performance

Specifications

• Chuck Type: 13 mm Metal Chuck
• RPM: 0 - 500 / 0 - 2,100
• BPM: 0 - 33,000
• Torque: 158 Nm
• Length: 175 mm

Includes

• 1 x 18V FUEL™ 13mm Hammer Drill/Driver (M18FPD3)
• 1 x Bit Holder
• 1 x Side Handle
• 1 x Belt Clip

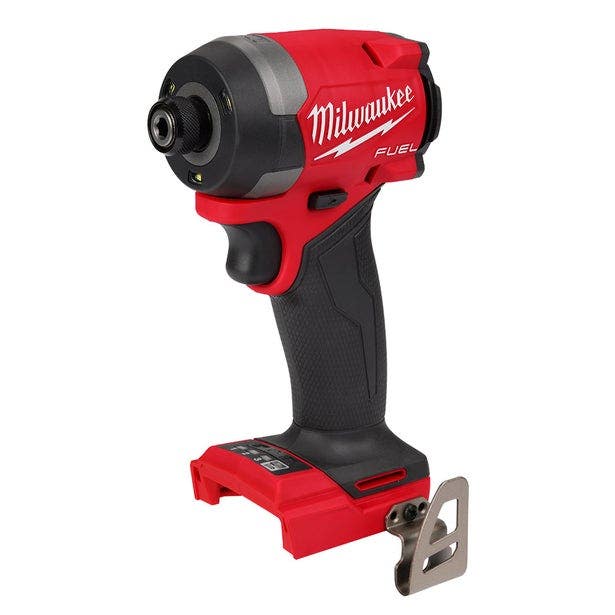

MILWAUKEE 18V FUEL™ 1/4" Hex Impact Driver Skin M18FID30

The 18V FUEL™ 1/4" Hex Impact Driver features the POWERSTATE™ Brushless motor which delivers maximum power for a full range of capabilities to complete the widest variety of applications. Increase productivity on the jobsite with fast driving speed without sacrificing power or control. REDLINK PLUS™ intelligence delivers Ultimate Trigger Control by providing smooth acceleration for small fasteners to prevent stripping of screws or damaging of materials. Featuring 4-mode drive control provides users with greater control over output speed and power. Self-Tapping Screw Mode is designed to reduce walking when starting self-tapping screws as well as reduce overdriving, breaking, and stripping out screws. The new impact driver also features Tri-LED lighting, illuminating the area of work while eliminating shadows.

• Enhanced motor gives the M18FID3 0 - 4,400 IPM and 226 Nm of Max Torque
• Provides the user the ability to deliver power to more demanding applications back-to-back
• Enhanced motor delivers an improved 3,900 RPM when compared to previous generations
• Provides the user with increased range of speed to complete application fast and with minimal downtime
• Redesigned trigger mechanism with improved fitment and smoother acceleration
• Tri-LED lighting illuminating the area of work while eliminating shadows
• 4-Mode Drive Control provides users with greater control over the output speed and power

Specifications

• Chuck Type: 1/4" Hex
• Max Torque: 226 Nm
• RPM: 0 - 1,700 / 3,000 / 3,900 / 3,900
• IPM: 0 - 1,400 / 3,600 / 4,400 / 4,400
• DRIVE CONTROL™: 4 - Mode
• Single Hand Bit Insertion: Yes
• Tri-LED: Yes

Includes

• 1 x 18V FUEL™ 1/4" Hex Impact Driver (M18FID3)
• 1 x Bit Holder
• 1 x Belt Clip

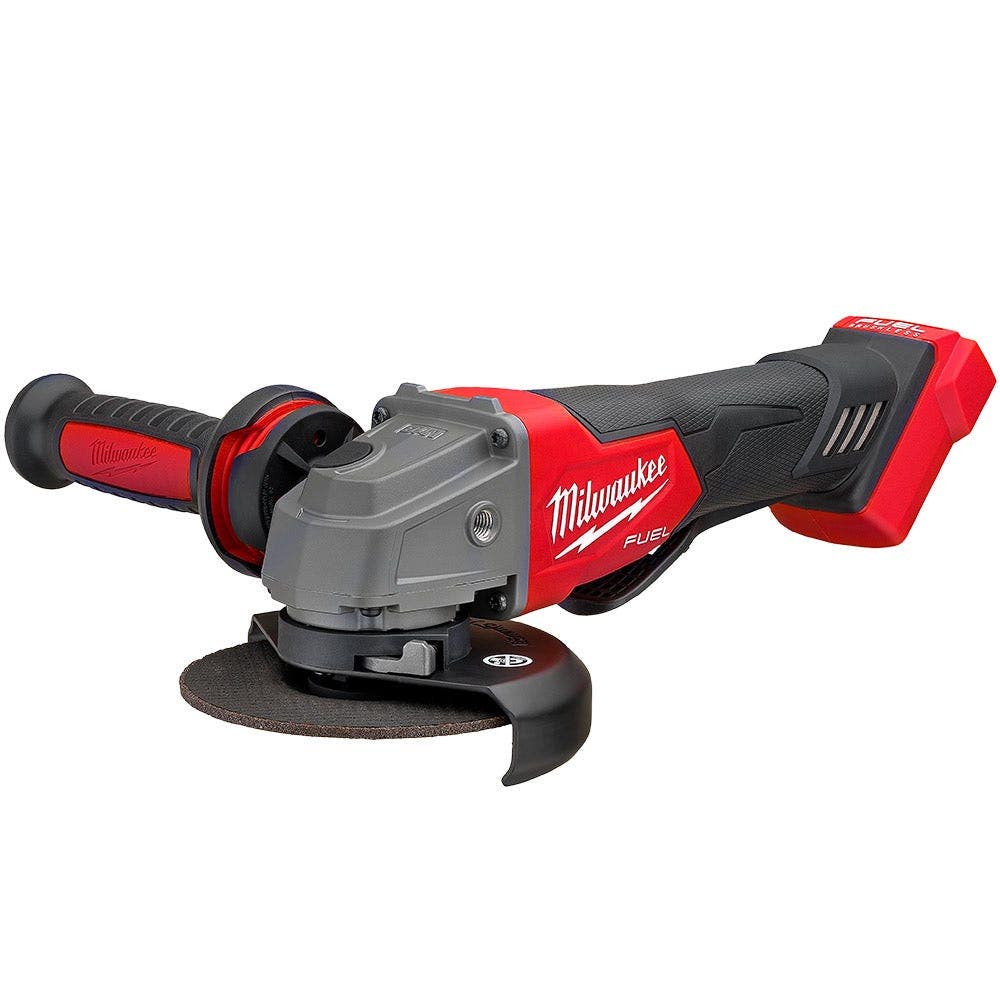

MILWAUKEE 18V FUEL™ Brushless 125mm Angle Grinder w. Deadman Paddle Switch Skin M18FAG125XPD-0

The M18 FUEL™ 125 mm (5") Angle Grinder with Deadman Paddle Switch is the next advancement in power and performance, fast cutting, and a lighter and more compact design when compared to the current model. The POWERSTATE™ Brushless Motor delivers maximum sustained power and 8,500 RPM to remove material faster and increase productivity. REDLINK™ PLUS Intelligence ensures unmatched levels of performance, protection, and compatibility. The M18 FUEL™ 125 mm (5") Angle Grinder with Deadman Paddle Switch includes an electronic clutch for kickback protection, as well as overload protection to maximise motor life. With tool-free accessory and guard adjustments, users will experience fast accessory changes, and less downtime, while remaining fully compatible with the most common accessories in the market. The MILWAUKEE® M18 FUEL™ 125 mm (5") Angle Grinder with Deadman Paddle Switch takes cordless grinders to the next level.

• Next generation M18CAG125XPD with electronic and ergonomic upgrade
• More compact, lightweight and balanced design allow for more comfortable and manoeuvrable use
• POWERSTATE™ Brushless Motor provides 8,500 RPM
• REDLINK™ PLUS Electronic Intelligence enables advanced communication between your batteries and tools, allowing for unmatched levels of performance, protection, and productivity
• E-Clutch with kickback protection
• FIXTEC™ System allows 100% tool-free wheel change
• Paddle switch design provides increased comfort and ease-of-use in various positions
• Includes 125 mm (5") Type 27 Guard and Type 1 Clip-On Guard

Specifications

• Wheel Diameter: 125 mm (5")
• Switch Type: Paddle Switch, No-Lock
• No Load RPM: 8,500
• Spindle: M14
• E-Clutch / Kickback Protection: Yes
• Overload Protection: Yes
• Tool-Free Guard Change: Yes
• Tool-Free Accessory Change: Yes
• Anti-Vibration Handle: Yes

Includes

• 1 x Anti-Vibration Side Handle
• 1 x 125 mm (5") Type 27 Guard
• 1 x Type 1 Clip-On Guard
• 1 x Backing Flange
• 1 x Spanner Wrench
• 2 x Vent Clips

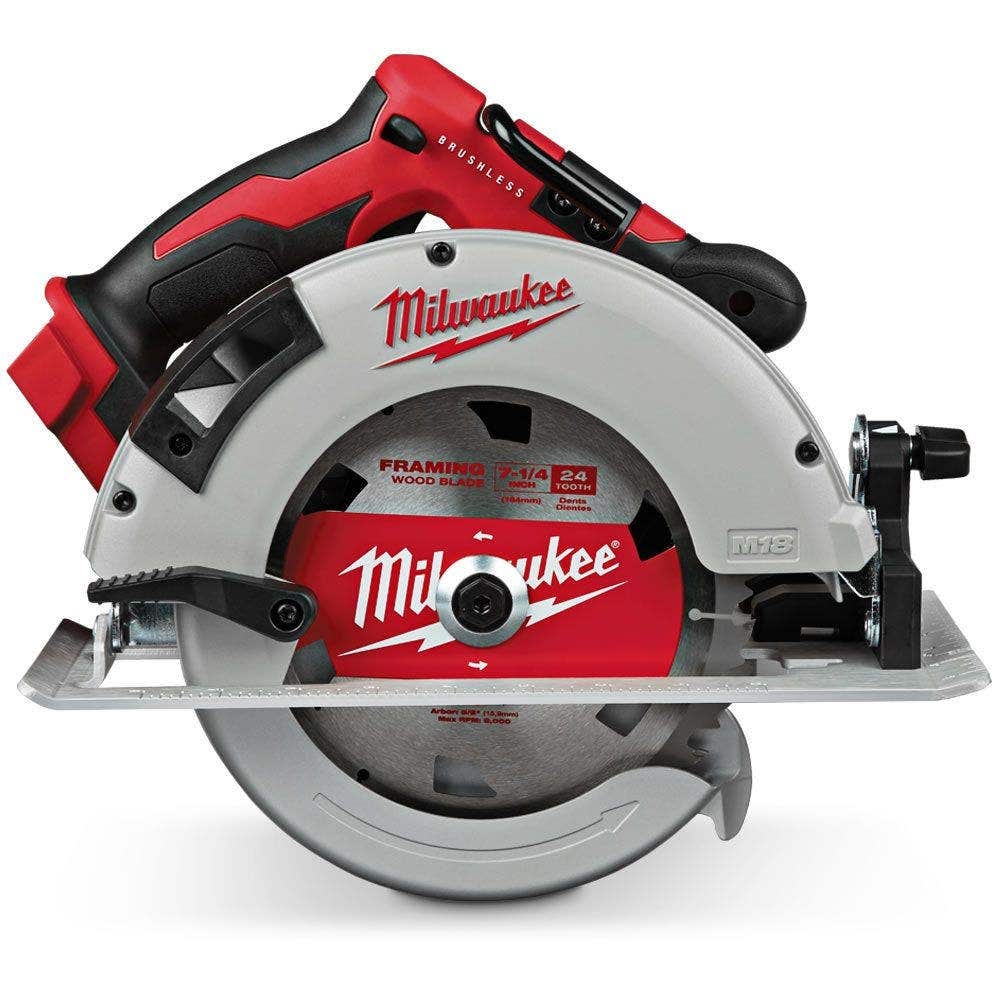

MILWAUKEE 18V Brushless 184mm Circular Saw Skin M18BLCS66-0

M18™ Brushless 184mm Circular Saw delivers maximum power in a brushless motor while providing more run-time. The Milwaukee® built motor and REDLINK™ electronics provide more efficient power delivery, more power and fewer trips to the charger. With 5,000 RPM the M18BLCS66-0 provides smooth cutting, and at only 3.3kg, it is lighter than most corded saws. The 184mm Brushless Circular Saw also features an integrated rafter hook, magnesium guards, an aluminum shoe and LED light.

• Magnesium upper and lower guard
• Integrated rafter hook for easy storage
• Electric brake to stop blade after trigger is released
• Delivers 5,000rpm for smooth, powerful cutting
• Milwaukee Brushless Motor: Optimised for efficiency, this motor delivers more run-time and longer life than brushed motors.

Specifications:

• Blade size: 184mm
• Arbor size: 15.88mm
• Max cut depth:
• At 90°: 63.5mm
• At 45°: 47.6mm

Includes:

• 1 x 18V Brushless 184mm Circular Saw (Tool Only) [M18BLCS66-0]
• 1 x Blade
• 1 x Blade Wrench
• 1 x Rip Fence

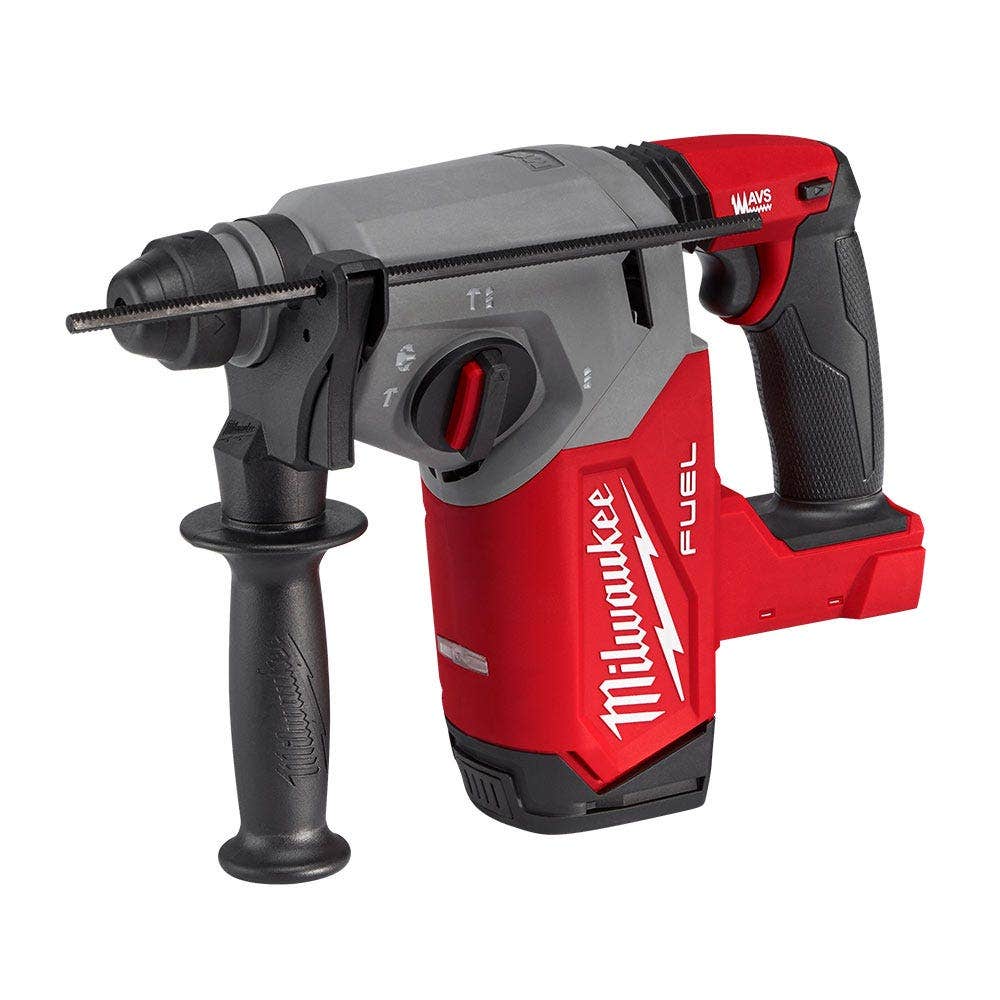

MILWAUKEE 18V FUEL™ 26mm SDS Plus Rotary Hammer Skin M18FH-0

The M18 FUEL™ 26 mm SDS Plus Rotary Hammer delivers fast drilling, hard-hitting performance, and maximum control for productivity on the job site. Designed to achieve top performance with only moderate pressure, the rotary hammer is compatible with all M18™ REDLITHIUM™-ION batteries, and is optimized for use with M18™ REDLITHIUM™-ION HIGH OUTPUT™ 6.0Ah batteries (sold separately). The POWERSTATE™ Brushless Motor delivers users 2.7 J of impact energy, 1,330 RPM, and 4,800 BPM, providing speed and power in the most demanding applications. REDLINK™ PLUS Intelligence tool technology ensures maximum rotary drill performance and protects the tool from overload, overheating, and over-discharge.

The MILWAUKEE® M18 FUEL™ 26 mm SDS Plus Rotary Hammer includes AUTOSTOP™ Kickback Control for maximum control and enhanced safety, with the tool sensing a bind-up situation when users are drilling in rebar or hard aggregate and stopping over-rotation, without the need for the user to release the trigger, indicated by the AUTOSTOP™ Indicator LED. The Anti-Vibration System (AVS) minimizes vibration for maximum comfort when in use for extended periods. A Dedicated Dust Extractor (M18FDEX) is also available (sold separately), which once connected is powered by the Rotary Hammer.

• 3 mode (Rotary Hammer, Hammer Only, and Rotary Only)
• POWERSTATE™ Brushless Motor delivers fast drilling
• 2.7 J impact energy for hard-hitting performance
• Anti-Vibration System (AVS) for maximum user comfort
• AUTOSTOP™ Kickback Control senses bind-up and prevents over-rotation
• REDLINK™ PLUS Intelligence integrates full-circle communication between tool, battery and charger to protect from overloads, over-heating and over-discharge
• Integrated LED light for illuminating dark workspaces
• Compatible with M18 FUEL™ HAMMERVAC™ 26 mm Dedicated Dust Extractor (M18FDEX)
• Adjustable depth gauge rod for accurate hole depths

Includes

• (1) M18 FUEL™ 26 mm SDS Plus Rotary Hammer (M18FH-0)
• (1) Side Handle with Depth Gauge

Specifications

• Platform: M18 FUEL™
• Max Capacity: 26 mm
• Impact Energy: 2.7 J
• RPM: 1,330
• BPM: 4,800
• Kickback Prevention: Yes
• Anti-Vibration: Yes
• Length: 296 mm

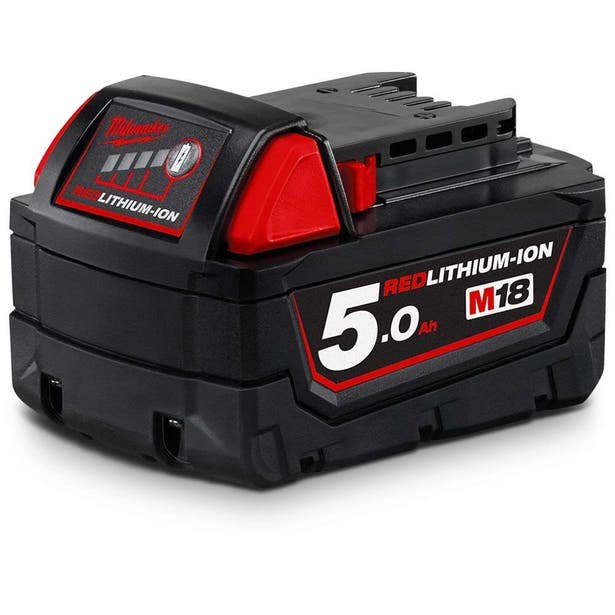

MILWAUKEE 18V 5.0Ah Red Lithium-Ion Battery M18B5

The M18™ 5.0AH REDLITHIUM-ION™ BATTERY features superior pack construction, electronics, and performance to deliver more work per charge and more work over the life of the pack than any battery on the market. M18™ 5.0AH REDLITHIUM-ION™ BATTERY features an advanced design, protecting the pack against harsh jobsite environments. This protection routes water away from the electronics and out of the battery pack, extends run-time and life by minimizing heat, and prevents pack failures from vibration or drops.

This unique to Milwaukee design also allows the battery to operate in extreme cold weather conditions (below OoF/-18oC). Managed by Milwaukee’s exclusive REDLINK™ Intelligence, the battery features overload protection to prevent you from damaging your cordless power tools in heavy-duty situations, while the discharge protection prevents cell damage. It also provides full system compatibility with 60+ M18™ cordless solutions. Upgrade to the M18™ 5.0AH REDLITHIUM-ION™ BATTERY to instantly increase the run-time and durability of your M18™ cordless tools.

• REDLINK™ intelligence, provides optimised performance and over load protection
• Best in class construction, offers long lasting performance and durability
• Fuel gauge on board displays remaining run time for less down time on the job
• All weather performance delivers fade free power in extreme jobsite conditions
• 2.5x more run time
• 20% more power than a standard 18V lithium battery
• 2x more life than a standard 18V lithium battery

Specifications

• Platform: M18™
• Charge time:
  • M12-18FC: 60 mins
  • M12-18C: 105 mins

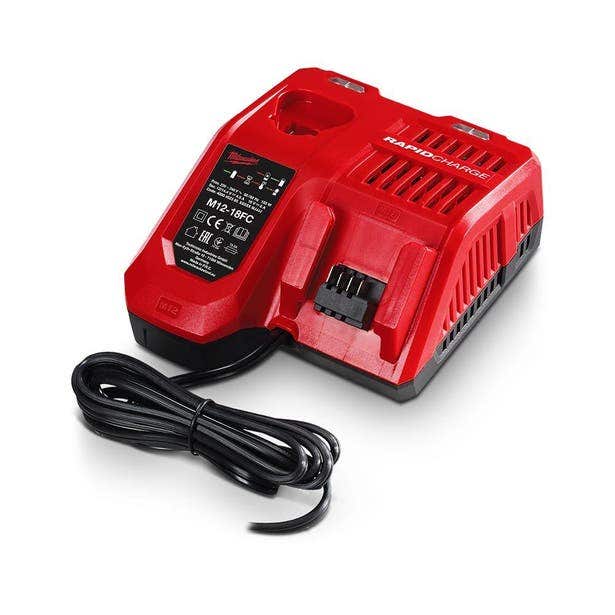

MILWAUKEE 12V/18V 4.5/6.0Ah Multi Voltage Rapid Charger M12-18FC

The 18V & 12V Rapid Charger charges packs up to 40% faster, reducing downtime and maximising productivity. The charger accepts all M18™ and M12™ batteries, providing an upgrade for both systems. Featuring REDLINK™ Intelligence, it communicates directly with the battery to monitor cell voltage, temperature, and charge status to optimise the performance and extend the life of the pack. As an added level of communication, the charger indicates when the battery reaches an 80% charge, providing confidence that a substantial amount of work can be completed without waiting for a full charge.

• Charges batteries up to 40% faster.
• Charges all 12V and 18V batteries.
• Sequential charging: automatically charges the second inserted pack once the first pack is fully charged.
• REDLINK™ Intelligence: charger communicates with the battery pack to ensure optimum performance and extend life
• 18V REDLITHIUM-ION 2.0 Ah / 4.0 Ah / 5.0 Ah / 6.0 Ah / 9.0 Ah battery packs recharge in 26 min / 47 min / 59 min / 68 min/ 95 min or less
• 12V REDLITHIUM-ION 2.0 Ah / 3.0 Ah / 4.0 Ah / 6.0 Ah battery packs recharge in 28 min / 45 min / 57 min / 90 min or less

Specifications:

• Platform: 12V
• Charge Time:
  • 2.0Ah: 26 minutes
  • 4.0Ah: 47 minutes
  • 5.0Ah: 59 minutes
  • 6.0Ah: 75 minutes
  • 9.0Ah: 90 minutes
